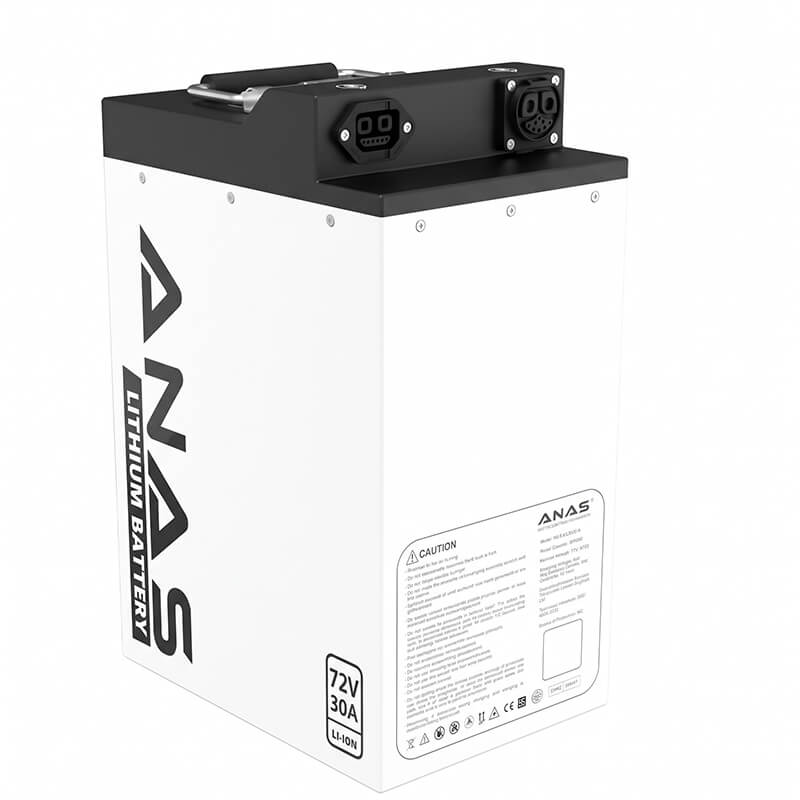

Manufactured in China with a precision sheet metal enclosure (193 × 162 × 305 mm) weighing 28 ± 0.5 kg. Features an ergonomic lifting handle, IPX7 structural potting, and separate charge and discharge ports to handle high-frequency mechanical swapping and extreme shock on commercial roads.
Engineered with a versatile industrial BMS supporting CAN, RS485, UART, RS232, and Single-Wire (一线通) communication. An optional integrated 4G/GPS IoT module enables real-time cloud-based fleet tracking, remote parameter adjustment, and predictive battery maintenance.
Built with automotive-grade LiFePO4 cells delivering 60A (2C) sustained continuous discharge and 30A (1C) rapid recharge. Supports master-slave parallel clustering up to 30 packs, providing scalable energy storage capacity with ≥2,000 cycles across a wide -20°C to 60°C thermal range.
| Engineering Parameter | Factory Specification & Verified Testing Metric |
|---|---|
| Product Model Designation | ANAS PB-LFP-7230-A |
| Chemical System | Lithium Iron Phosphate (LiFePO4 / LFP) |
| Nominal Energy Capacity | 2160Wh (72V 30Ah Configuration) |
| Rated Voltage Baseline | 72V System (3.2V Cell Chemistry Baseline) |
| Envelope Dimensions (L × W × H) | 193 mm × 162 mm × 305 mm |
| Total Pack Net Weight | 28 ± 0.5 kg |
| Standard Charging Current | 15A (0.5C Standard Charge) |
| Maximum Continuous Charging Rate | 30A (1C Fast Charging Capability) |
| Maximum Continuous Discharge Rate | 60A (2C Continuous High Drain) |
| Operating Temperature Range | -20°C to 60°C Ultra-Wide Thermal Window |
| Cycle Life Endurance | ≥2,000 Cycles @ 25°C (1C/1C 100% DOD, ≥80% Capacity Ret.) |
| Connector Architecture | Separate Charge & Discharge Ports (异口设计) |
| Smart Communication Protocols | CAN + RS485 + UART + RS232 + Single-Wire (一线通) |
| Cloud IoT Telemetry Module | Optional (4G GPS / Remote Cloud Monitoring Available) |
| Parallel Clustering Capability | ≤ 30 Units Master-Slave Parallel Connection |
| Compliance & Certifications | ISO Certified Production, CE Marked, RoHS Compliant, UN38.3, MSDS |
Direct Manufacturer Customization Services:
Note: All battery packs are engineered and tested in China under ISO 9001 quality management guidelines, undergoing 100% pre-shipment charge-discharge cycle tests.
A: The onboard smart BMS utilizes automated master-slave address allocation and pre-charging management to prevent cross-charging inrush currents between packs of unequal state of charge, ensuring safe and seamless parallel scaling up to 30 units.
A: We accommodate flexible MOQ starting from sample pallet quantities for fleet trials. Standard wholesale production lead time is 20 to 30 working days, shipped directly from our China factory with full UN-compliant certified dangerous goods crating.
A: Yes. All shipments include certified UN38.3 transport reports, MSDS declarations, CE marking, and RoHS compliance certificates. ANAS provides technical warranty support and RMA processing through our European service center in Milan, Italy.
Developing commercial 72V electric motorcycle fleets, smart battery swapping networks, or heavy AGV robotic platforms? Contact our technical engineering division to obtain the official PB-LFP-7230-A technical datasheet, 2D/3D CAD dimensional files, communication protocol documentation, and volume-tiered wholesale factory price quotes.
